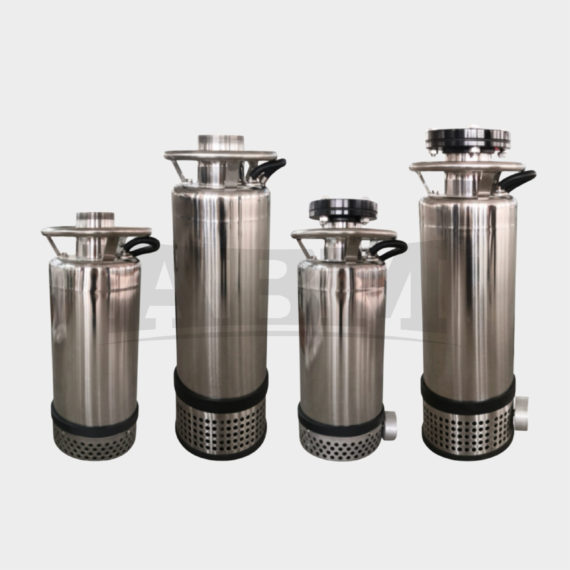

APH Series Submersible Dewatering Pumps
General Introduction
The ABM APH Series Submersible Dewatering Pumps are designed for high-performance water removal and transfer across industrial, agricultural, and aquaculture applications. Built with stainless-steel construction and corrosion-resistant materials, the APH Series delivers reliable operation even in harsh environments. Its compact, fully submersible design allows for efficient dewatering in deep wells, ponds, and construction sites. Combining superior head performance, high water volume capacity, and long service life, the APH Series stands as an ideal choice for users seeking durability, stability, and energy efficiency in continuous water management operations.
General Technical Data
-
Rated Power
2.2~11kW
-
Max Flow
480M3/H
-
Max Pressure
16 M
-
Voltage
220V/380V
Description
Technical Highlights
The APH Series features a dry-type, water-cooled motor with dual silicon carbide mechanical seals and epoxy-sealed waterproof cable base, ensuring long-term durability and excellent insulation (Class F/H, IP68 protection). The bronze or chrome-steel impeller provides high suction power (up to 8 meters) and superior resistance to wear and corrosion. Internal casting is treated with high-solid anti-rust coating, extending the pump’s lifespan. Designed for continuous operation, it offers high head and large discharge capacity, making it ideal for aquaculture ponds, drainage systems, agricultural irrigation, landscaping, and site dewatering. The use of metric screws ensures easy installation and compatibility with various pipe fittings.
