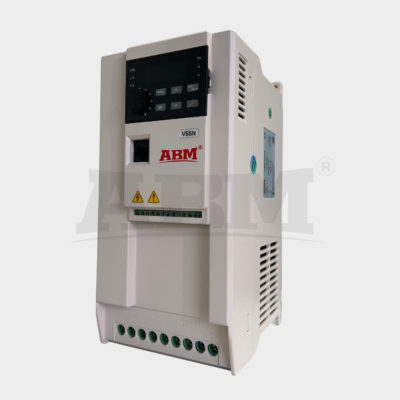

V55 Drives
Brands: ABM
General Technical Data
-
Rated Power
0.4~7.5kw
-
Voltage
220V/380V
Description
| Technical Specifications of V55 Series | ||
| Drive Series | V55 | |
| Control Mode | SPWM | |
| Input Power | 380V Power supply: 380±15% 220±15% | |
| 220V Power supply: | ||
| 4-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, forward or reserverunning, and fault, etc. | |
| Communication Control | RS-485 | |
| Operation Temperature | -10~40℃ | |
| Humidity | 0-95% Relative Humidity (without dew) | |
| Vibration | Below 0.5G | |
| Performance andMotor Control | Range | 0.10~600.00Hz |
| Accuracy | Digital: 0.01% (-10-40℃) | |
| Analog: 0.1% (25±10) | ||
| Setting Resolution | Digital: 0.01Hz; Analog: 1%o of Max. Operating Frequency | |
| Output Resolution | 0.01Hz | |
| Keyboard Setting Method | Press | |
| directly to set | ||
| Analog Setting Method | External Voltage 0-5V, 0-10V, 4-20mA,0-20mA | |
| Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can berespectively set. | |
| Ramp Control | Selectable 4-speed steps ramp-up and down time (0.1-6500s). | |
| V/F Curve | Set V/F curve at will | |
| Torque Control | Torque increase is settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
| Multi-Inputs | 6 multi-function input terminals for 8-speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions. | |
| Multi-Outputs | 1 multi-function output terminals for displaying of running, zero speed, counter, externalabnormity, program operation and other information and warnings. | |
| Other Functions | AVR (auto voltage regulation), Deceleration stop or free-stop, DC brake, auto reset and restart,frequency track, PLC control, traverse function, drawing control, auto energy-savings, carrieradjustable by max. 16KHz, etc. | |
| Protection | Overload Protection | Electronic relay protection motor Drive (for constant torque 150%/1 min; for the kinds of fan120%/1min.) |
| FUSE Protection | FUSE broken, motor stops. | |
| Over-voltage | DC Voltage > 400V for 220V class DC Voltage > 800V for 380V class | |
| Low Voltage | DC Voltage < 130V for 220V class DC Voltage < 300V for 380V class | |
| Instant Stop and Restart | Restarted by frequency track after instantaneous stop. | |
| Stall Prevention | Anti-stall during Acc/Dec run | |
| Output End Shorts | Electronic circuit protecting | |
| Other Functions | Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset,parameter lock PID, one-drive-more, etc. | |
Model designation
V55 Single phase 220V
V55-0R4S2B V55-0R7S2B V55-1R5S2B V55-2R2S2B V55-3R7S2B V55-5R5S2B
V55 Three phase 380V
V55-0R4T4B V55-0R7T4B V55-1R5T4B V55-2R2T4B V55-3R7T4B V55 5R5T4B V55-7R5T4B
