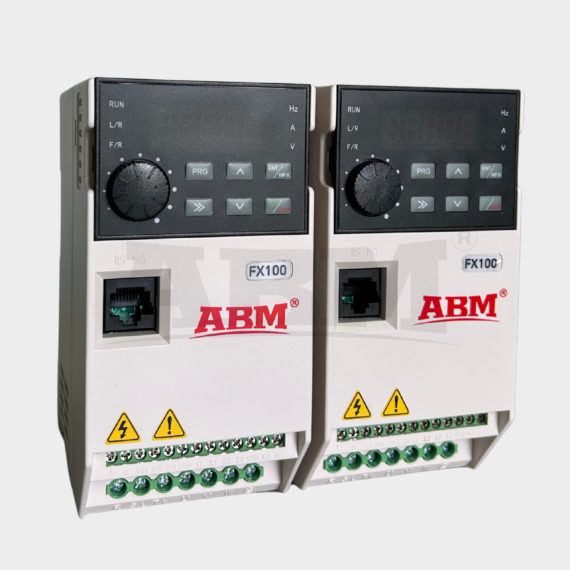

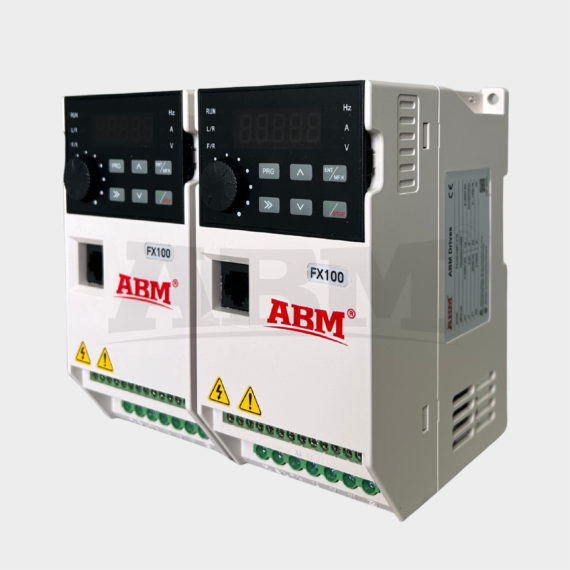

FX100 Series Vector Control Inverter
General Introduction
The ABM FX100 Series Vector Control Inverter is a new-generation high-performance AC drive designed for precise motor speed and torque control across a wide range of industrial applications. Utilizing advanced vector control algorithms, the FX100 Series delivers excellent dynamic response, high starting torque, and smooth speed regulation even under variable load conditions. With its compact structure, intuitive interface, and intelligent protection system, this series ensures efficient, stable, and reliable operation for automation systems, pumps, fans, conveyors, and machine tools. The FX100 embodies ABM’s commitment to innovation — combining superior performance, user-friendly design, and extended service life to meet the demanding standards of modern industry.
Description
Technical Highlights
The FX100 Series supports 1-phase 220V and 3-phase 380V input configurations, with output frequency up to 1333Hz, ensuring wide adaptability for both low- and high-speed motor applications. It features multiple control modes including V/F control, vector control, and torque control, enabling compatibility with asynchronous and permanent magnet synchronous motors. The drive includes integrated PID regulation, Modbus-RTU communication, and a multi-function digital I/O interface for flexible system integration. Advanced functions such as auto-tuning, multi-speed operation, soft start/stop, overvoltage and overload protection, and intelligent fault diagnostics enhance performance and safety. The FX100 also incorporates a high-efficiency cooling system and supports carrier frequencies up to 16 kHz, ensuring low noise and stable operation across all environments
